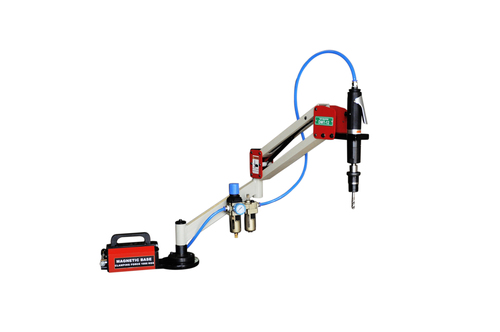

Vertical Tapping Machine

Vertical Tapping Machine
Vertical Tapping Machine
Product Code : 04
Brand Name : TAP MASTER
Product Description

Feasible in robust construction, fine finish, superior performance and high durability, our vertical tapping machine is fabricated with the high quality components and innovative techniques. This device includes electrical tapping spindle (Fuji Servo Motor Japaneses), parallel arm, slanted arm, table mounting column, to choose any six safety tapping adapters and electric- controlled device. Offering with our vertical tapping machine are a varieties of optional devices such as depth control, various degree tapping device, cast iron work cart and permanent magnet base device. Furthermore, this tapping Machine is available at different technical specifications and at very reasonable prices.

Usage : used for making thread holes in a surface.

Vertical Tapping Machine Features:

  • Robust construction
  • High durability
  • Market leading prices
  • Excellent performance

Vertical Tapping Machine Standard Accessories:

  • Choose Any Six Safety Clutch Tapping Adapters
  • Electric Controlled Device
  • Electric Tapping Machine
  • Parallel Arm
  • Stanted Arm
  • Table Mounting Column

Vertical Tapping Machine Optional Device:

  • Depth Control
  • 90 And Various Degree Tapping Device
  • Cast Iron Work Cart
  • Permanent Magnet Base

Vertical Tapping Machine Technical Specifications:

  • For TapM3~M16M6~M24M8~M36
  • Speed (rpm)0 – 2000 – 1500 – 120
  • Work Range (Rmax)110018001500/2200
  • Work Range (Rmin) 200250300
  • Voltage220 V
  • Single Phase 220 V
  • Single Phase 220 V
  • Electric Motor0.4 kW0.75 kW1.50 kWWeight (Kg)15/2030/4040/65

Model

DMT-36

For Tap

M6-36

Speed (rpm)

0~150

Work range

Rmax (mm)

1600

Rmin (mm)

200

Voltage

200V single-Phase

Electric Motor

1.5 kW

Weight (kg)

35



TAP MASTER
