Home » Products » Horizontal Tapping Machine » Horizontal Tapping Machine

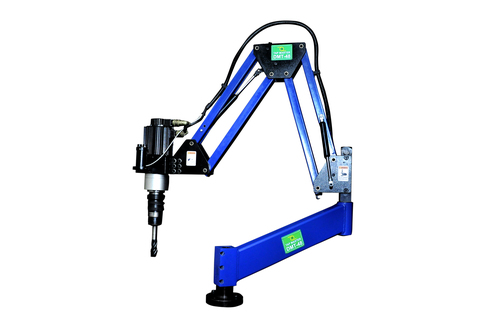

Horizontal Tapping Machine

Horizontal Tapping Machine
Horizontal Tapping Machine
Product Code : 03
Brand Name : TAP MASTER
Product Description

Feasible in robust construction, fine finish, superior performance and high durability, our horizontal tapping machine is fabricated with the high quality components and innovative techniques. This device includes electrical tapping spindle (Fuji Servo Motor Japaneses), parallel arm, slanted arm, table mounting column Choose any six safety tapping adapters and electric- controlled device. Offering with it a varieties of optional devices, such as depth control, various degree tapping device, cast iron work cart and permanent magnet base device. Furthermore, this machine is available at different technical specifications and at very reasonable prices.

Horizontal Tapping Machine Features:

  • Robust construction
  • Longer functional life
  • Smooth finishing
  • High performance
Horizontal Tapping Machine Standard Accessories:
  •  Electric Tapping Machine
  •  Parallel Arm
  •  Stanted Arm
  •  Table Mounting Column
  •  Choose Any Six Safety Clutch Tapping Adapters
  •  Electric Controlled Device
Horizontal Tapping Machine Optional Device:
  •  Depth Control
  •  90 And Various Degree Tapping Device
  •  Cast Iron Work Cart
  •  Permanent Magnet Base

Horizontal Tapping Machine Technical Specifications:

For TapM3~M16M6~M24M8~M36Speed (rpm)0 – 2000 – 1500 – 120Work Range (Rmax)110018001500/2200Work Range (Rmin)200250300Voltage220 V Single Phase220 V Single Phase220 V Single PhaseElectric Motor0.4 kW0.75 kW1.50 kWWeight (Kg)15/2030/4040/65
